Centralite Lasers

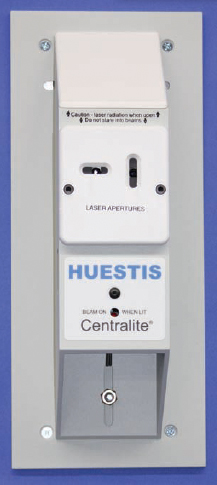

Huestis Fixed Lasers - Red or Green Diode
Click here to download the PDF brochure.
Features:
- Unique three-filter design reduces transient power issues and extends diode life
- Precise line quality to ensure accurate position reproducibility
- Easy access to mounting bolt during installation
- Stable aluminum housing
- Depth: 3.9" (9.9 cm)
- Width: 3" (7.6 cm) housing, 5.5" (13.9 cm) mounting plate
- Height: 11.5" (29.2 cm) housing, 13" (33 cm) mounting plate
- Laser Beam Output: < 1 mW per beam (Class II laser)
- Line Width (red diode): 0.9–1.2 mm at isocenter when mounted 3 m from isocenter
- Line Width (green diode): 0.9–1.1 mm at isocenter when mounted 3 m from isocenter
- Fan Beam Angle: > 50°
- Wavelength (red diode): 635–650 nm
- Wavelength (green diode): 520 nm
